This perfect model is made by Trinityscsp
You help us to design faster. THANK YOU SO MUCH !!!!!!

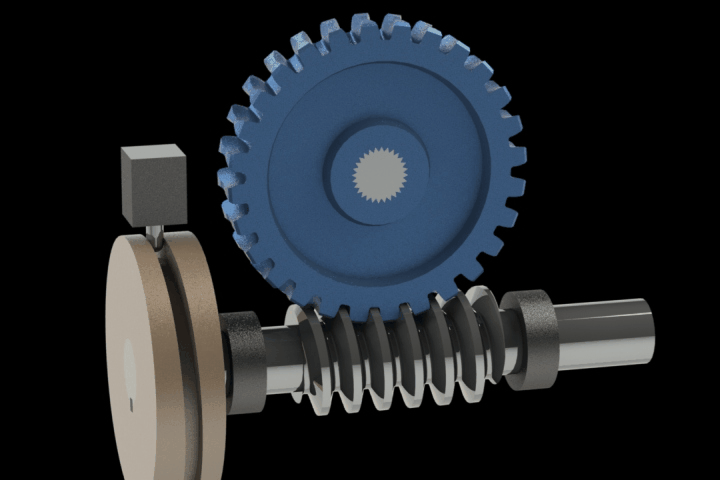

This mechanism uses a cam to move a shaft containg one worm gear. Since the displacement caused by the cam is the same made by the worm in half a turn, during the first half both movements null each other, and during the other half they sum, doubling the displacement. See the graph attached.
Software: STL, STEP / IGES, SOLIDWORKS, Rendering, Parasolid
Categories: Educational, Machine design
Tags: mechanism, gears, cam, intermittent
